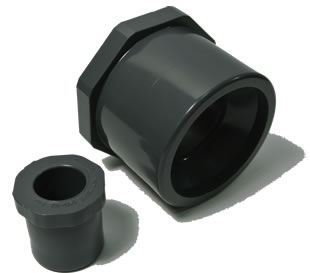

| UPVC 異徑接頭(卜申 )(SXS) |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存

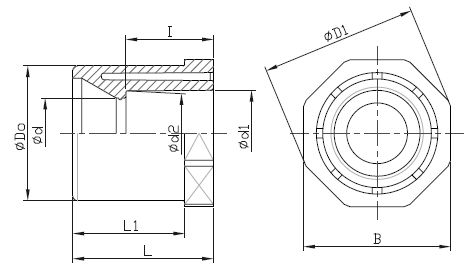

異徑接頭 (G × S)
|
Size
|
Outside Dia
|
Socket Type
|
Structure Diameter
|
|
D0
|
d1
|
d2
|
l
|
d
|
L
|
L1
|
D1
|
B
|
|
1/2" × 1/4"
|
21.34
|
14.02
|
13.61
|
19
|
11
|
29
|
23
|
31
|
30
|
|
1/2" × 3/8"
|
21.34
|
17.45
|
17.04
|
22
|
12
|
29
|
23
|
31
|
30
|
|
3/4" × 1/2"
|
26.67
|
21.54
|
21.23
|
24
|
13
|
33
|
27
|
31
|
30
|
|
1" × 3/8"
|
33.4
|
17.45
|
17.04
|
24
|
12
|
38
|
30
|
39.5
|
38
|
|
1" × 1/2"
|
33.4
|
21.54
|
21.23
|
24
|
12
|
38
|
30
|
39.5
|
38
|
|
1" × 3/4"
|
33.4
|
26.87
|
26.57
|
26
|
18
|
38
|
30
|
39.5
|
38
|
|
1-1/4" × 1/2"
|
42.16
|
21.54
|
21.23
|
24.2
|
16.5
|
44
|
35
|
52
|
50
|
|
1-1/4" × 3/4"
|
42.16
|
26.87
|
26.57
|
26
|
21
|
44
|
35
|
52
|
50
|
|
1-1/4" × 1"
|
42.16
|
33.65
|
33.27
|
29.5
|
28
|
44
|
35
|
52
|
50
|
|
1-1/2" × 1/2"
|
48.26
|
21.54
|
21.23
|
24.2
|
16.5
|
47
|
38
|
58
|
55
|
|
1-1/2" × 3/4"
|
48.26
|
26.87
|
26.57
|
26
|
21
|
47
|
38
|
58
|
55
|
|
1-1/2" × 1"
|
48.26
|
33.65
|
33.27
|
29.5
|
28
|
47
|
38
|
58
|
55
|
|
1-1/2" × 1-1/4"
|
48.26
|
42.42
|
42.04
|
32.5
|
35
|
47
|
38
|
58
|
55
|
|
2" × 1/2"
|
60.33
|
21.54
|
21.23
|
24.2
|
16.5
|
52
|
42
|
68
|
65
|
|
2" × 3/4"
|
60.33
|
26.87
|
26.57
|
26
|
21
|
52
|
39
|
68
|
65
|
|
2" × 1"
|
60.33
|
33.65
|
33.27
|
29.5
|
28
|
52
|
39
|
68
|
65
|
|
2" × 1-1/4"
|
60.33
|
42.42
|
42.04
|
32.5
|
35
|
52
|
39
|
68
|
65
|
|
2" × 1-1/2"
|
60.33
|
48.56
|
48.11
|
35.5
|
43
|
52
|
39
|
68
|
65
|
|
2-1/2" × 1-1/4"
|
73.03
|
42.42
|
42.04
|
32.5
|
36
|
60
|
48.5
|
85
|
80
|
|
2-1/2" × 1-1/2"
|
73.03
|
48.56
|
48.11
|
35.5
|
43
|
60
|
48.5
|
85
|
80
|
|
2-1/2" × 2"
|
73.03
|
60.63
|
60.17
|
39.1
|
52
|
60
|
48.5
|
85
|
80
|
|
3" × 1-1/2"
|
88.9
|
48.56
|
48.11
|
35.5
|
43
|
65
|
51
|
105
|
99
|
|
3" × 2"
|
88.9
|
60.63
|
60.17
|
39.1
|
54
|
65
|
51
|
105
|
99
|
|
3" × 2-1/2"
|
88.9
|
73.38
|
72.85
|
47.5
|
65
|
65
|
51
|
105
|
99
|
|
4" × 2"
|
114.3
|
60.63
|
60.17
|
41.1
|
54
|
75
|
60.5
|
132
|
125
|
|
4" × 2-1/2"
|
114.3
|
73.38
|
72.85
|
47.5
|
65
|
75
|
60.5
|
132
|
125
|
|
4" × 3"
|
114.3
|
89.31
|
88.7
|
50.6
|
80
|
75
|
60.5
|
132
|
125
|
|
5" × 4"
|
114.3
|
114.76
|
114.1
|
60.2
|
100
|
82
|
69.6
|
150
|
145
|
|
6" × 2"
|
168.28
|
60.63
|
60.17
|
41.1
|
51
|
89
|
76.5
|
191
|
180
|
|
6" × 3"
|
168.28
|
89.31
|
88.7
|
50.6
|
80
|
89
|
76.5
|
191
|
180
|
|
6" × 4"
|
168.28
|
114.76
|
114.1
|
60.2
|
105
|
89
|
76.5
|
191
|
180
|
|
6" × 5"
|
168.28
|
114.81
|
114.1
|
69.5
|
125
|
89
|
76.5
|
191
|
180
|
|
8" × 4"
|
219.1
|
114.76
|
114.1
|
60.5
|
100
|
120
|
104.6
|
246
|
235
|
|
8" × 6"
|
219.1
|
168.83
|
168
|
79
|
150
|
120
|
104.6
|
246
|
235
|
|
10" × 3"
|
273.05
|
89.31
|
88.7
|
50.6
|
80
|
148
|
130
|
290
|
280
|
|
10" × 4"
|
273.05
|
114.76
|
114.1
|
60.2
|
105
|
148
|
130
|
290
|
280
|
|
10" × 6"
|
273.05
|
168.83
|
168
|
79.2
|
150
|
148
|
130
|
290
|
280
|
|
10" × 8"
|
273.05
|
219.84
|
218.69
|
105
|
200
|
148
|
130
|
290
|
280
|
|
12" × 4"
|
323.85
|
114.76
|
114.1
|
60.2
|
100
|
175
|
155
|
345
|
330
|
|
12" × 6"
|
323.85
|
168.83
|
168
|
79.2
|
150
|
175
|
155
|
345
|
330
|
|
12" × 8"
|
323.85
|
219.84
|
218.69
|
105
|
200
|
175
|
155
|
345
|
330
|
|
12" × 10"
|
323.85
|
273.81
|
272.67
|
130
|
245
|
175
|
155
|
345
|
330
|
|
14" × 10"
|
355.6
|
324.61
|
323.47
|
130
|
245
|
200
|
180
|
380
|
360
|
|
14" × 12"
|
355.6
|
324.61
|
323.47
|
135
|
300
|
200
|
180
|
380
|
360
|
(單位 : mm)
|
| |
| |
| |
|
