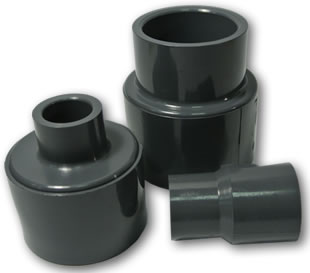

| UPVC 異徑直接頭(SXS) |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存

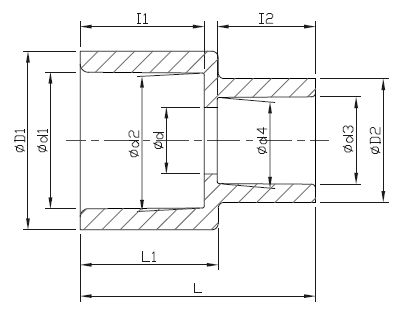

異徑直接頭 (S × S)
|
Size
|
Outside Dia
|
Socket Type
|
Structure Diameter
|
|
D1
|
D2
|
d1
|
d2
|
I1
|
d3
|
d4
|
I2
|
d
|
L
|
L1
|
|
3/4" × 1/2"
|
37
|
30.5
|
26.87
|
26.57
|
25.4
|
21.54
|
21.23
|
22.22
|
16.5
|
57.5
|
30
|
|
1" × 1/2"
|
47
|
30.5
|
33.65
|
33.27
|
28.58
|
21.54
|
21.23
|
22.22
|
16.5
|
58
|
36
|
|
1" × 3/4"
|
47
|
35
|
33.65
|
33.27
|
28.58
|
26.87
|
26.57
|
25.4
|
21
|
61
|
36
|
|
1-1/4" × 1/2"
|
55.5
|
30.5
|
42.42
|
42.04
|
31.75
|
21.54
|
21.23
|
22.22
|
16.5
|
62.5
|
42
|
|
1-1/4" × 3/4"
|
55.5
|
35
|
42.42
|
42.04
|
31.75
|
26.87
|
26.57
|
25.4
|
21
|
65
|
42
|
|
1-1/4" × 1"
|
55.5
|
44
|
42.42
|
42.04
|
31.75
|
33.65
|
33.27
|
28.58
|
28
|
68.5
|
42
|
|
1-1/2" × 1/2"
|
63
|
30.5
|
48.56
|
48.11
|
34.93
|
21.54
|
21.23
|
22.22
|
16.5
|
65
|
42
|
|
1-1/2" × 3/4"
|
63
|
35
|
48.56
|
48.11
|
34.93
|
26.87
|
26.57
|
25.4
|
21
|
68
|
44
|
|
1-1/2" × 1"
|
63
|
44
|
48.56
|
48.11
|
34.93
|
33.65
|
33.27
|
28.58
|
28
|
71
|
44
|
|
1-1/2" × 1-1/4"
|
63
|
54
|
48.56
|
48.11
|
34.93
|
42.42
|
42.04
|
31.75
|
35
|
75
|
44
|
|
2" × 1/2"
|
75
|
30.5
|
60.63
|
60.17
|
38.1
|
21.54
|
21.23
|
22.22
|
16.5
|
68
|
44
|
|
2" × 3/4"
|
75
|
35
|
60.63
|
60.17
|
38.1
|
26.87
|
26.57
|
25.4
|
21
|
71
|
49.5
|
|
2" × 1"
|
75
|
44
|
60.63
|
60.17
|
38.1
|
33.65
|
33.27
|
28.58
|
28
|
74.5
|
49.5
|
|
2" × 1-1/4"
|
75
|
54
|
60.63
|
60.17
|
38.1
|
42.42
|
42.04
|
31.75
|
35
|
78.5
|
49.5
|
|
2" × 1-1/2"
|
75
|
60
|
60.63
|
60.17
|
38.1
|
48.56
|
48.11
|
34.93
|
42.5
|
82.5
|
49.5
|
(單位 : mm)
|
| |
| |
| |
|
