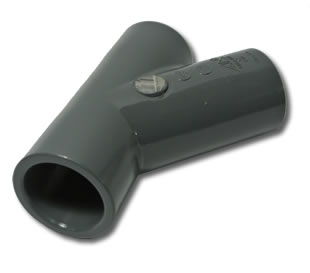

| UPVC Y三通 |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存
Y 三通 (S × S × S)
|
Size
|
Outside Dia
|
Socket Type
|
Structure Diameter
|
|
D0
|
d1
|
d2
|
l
|
d
|
L
|
H
|
|
1/2”
|
30.5
|
21.54
|
21.23
|
22.22
|
19
|
90
|
34
|
|
3/4”
|
36
|
26.87
|
26.57
|
25.4
|
24.5
|
105
|
40
|
|
1”
|
44
|
33.65
|
33.27
|
28.58
|
31
|
117
|
42
|
|
1-1/4”
|
61
|
42.42
|
42.04
|
31.75
|
40
|
150
|
52
|
|
1-1/2”
|
61
|
48.56
|
48.11
|
34.93
|
46
|
150
|
52
|
|
2”
|
76.5
|
60.63
|
60.17
|
38.1
|
58.5
|
181
|
60
|
|
3”
|
106
|
89.31
|
88.7
|
47.63
|
74
|
222
|
68
|
|
4”
|
132
|
114.76
|
114.07
|
57.15
|
100
|
277
|
83
|
|
6”
|
191
|
168.83
|
168
|
76.2
|
150
|
393
|
114
|
|
8”
|
246
|
219.84
|
218.69
|
101.6
|
200
|
570
|
177
|
(單位 : mm)
|
| |
| |
| |
|
