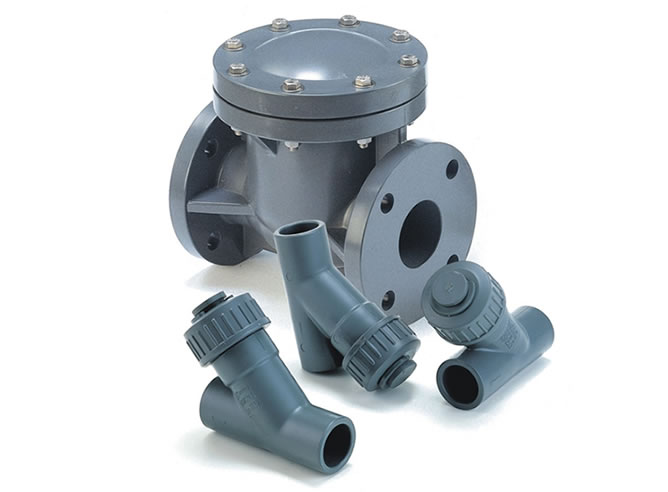

| UPVC T(Y)型過濾器 |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試, 輸送或貯存
規格:
|
型號
|
尺寸
|
規格
|
材質
|
墊片
|
接口
|
|
VP-220 T type
|
2"~8"
|
ANSI, JIS, DIN
|
PVC
|
EPDM, PTFE, FPMR
|
Flanged
|
|
VP-220 Y type
|
1/2"~2"
|
ANSI, JIS, DIN
|
PVC
|
EPDM, FPM
|
Union, Socket, Flanged
|
|
VP-221 T type
|
2"~8"
|
ANSI, JIS, DIN
|
CPVC
|
EPDM, PTFE, FPM
|
Flanged
|
|
VP-221 Y type
|
1/2"~2"
|
ANSI, JIS, DIN
|
CPVC
|
EPDM, FPM
|
Union, Socket, Flanged
|

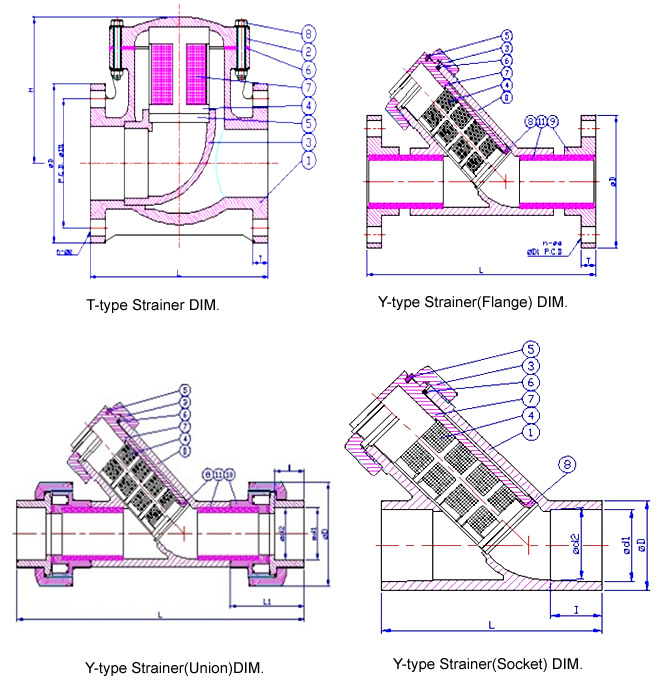

T-type Strainer DIM.
|
NO.
|
PART
|
MATERIAL
|
Q'TY
|
|
1
|
本體(BODY)
|
UPVC,CPVC
|
1
|
|
2
|
上蓋(BONNET)
|
UPVC,CPVC
|
1
|
|
3
|
90°彎頭(90°ELL)
|
UPVC,CPVC
|
1
|
|
4
|
內濾網本體(INNER BODY)
|
UPVC,CPVC
|
1
|
|
5
|
外濾網本體(OUTER BODY)
|
UPVC,CPVC
|
1
|
|
6
|
本體墊圈(GASKET)
|
EPDM,FPM
|
1
|
|
7
|
濾網(FILTER)
|
PP,SUS
|
1
|
|
8
|
螺絲組(BOLT SETS)
|
STEEL-SUS,304
|
8 ~ 16
|
|
SIZE
|
2"
(50mm)
|
2-1/2"
(65mm)
|
3"
(80mm)
|
4"
(100mm)
|
6"
(150mm)
|
8"
(200mm)
|
|
JIS
|
D
|
155
|
175
|
185
|
210
|
285
|
330
|
|
D1
|
120
|
140
|
150
|
175
|
240
|
290
|
|
n-Øe
|
4-19
|
4-19
|
8-19
|
8-19
|
8-23
|
12-23
|
|
ANSI
|
D
|
152
|
178
|
191
|
229
|
285
|
343
|
|
D1
|
121
|
140
|
152
|
191
|
241
|
299
|
|
n-Øe
|
4-19
|
4-19
|
4-19
|
8-19
|
8-23
|
8-23
|
|
DIN
|
D
|
165
|
185
|
200
|
220
|
285
|
343
|
|
D1
|
125
|
145
|
160
|
180
|
240
|
295
|
|
n-Øe
|
4-18
|
4-18
|
8-18
|
8-18
|
8-22
|
8-22
|
|
L
|
200
|
240
|
260
|
300
|
400
|
500
|
|
H
|
165
|
168.5
|
169
|
217
|
285
|
338
|
|
T
|
20
|
22
|
22
|
24
|
26
|
30
|
Y-type Strainer
|
NO. |
PART |
MATERIAL |
Q'TY |
|
1 |
本體(BODY) |
UPVC,CPVC |
1 |
|
3 |
螺帽(UNION NUT) |
UPVC,CPVC |
1 |
|
4 |
濾網(FILTER) |
PP,PE,SUS |
1 |
|
5 |
卡環(SET RING) |
UPVC,CPVC |
1 |
|
6 |
本體O環(O-RING) |
EPDM,FPM |
1 |
|
7 |
濾網架(FILTER HOLDER) |
UPVC,CPVC |
1 |
|
8 |
塞子(RETAINING RING) |
UPVC,CPVC |
1 |
|
9 |
法蘭片(FLANGE) |
UPVC,CPVC |
2 |
|
10 |
由令(UNION) |
UPVC,CPVC |
2 |
|
11 |
直管(PIPE) |
UPVC,CPVC |
2 |
Y-type Strainer(Flanged)DIM.
|
SIZE
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
Nom
|
(15mm)
|
(20mm)
|
(25mm)
|
(32mm)
|
(40mm)
|
(50mm)
|
|
JIS
|
ØD
|
95
|
100
|
125
|
135
|
140
|
155
|
|
ØD1
|
70
|
75
|
90
|
100
|
105
|
120
|
|
L
|
160
|
175
|
202
|
245
|
247
|
292
|
|
T
|
14
|
15
|
15
|
16
|
16
|
20
|
|
n-Øe
|
4-15
|
4-15
|
4-19
|
4-19
|
4-19
|
4-19
|
|
ANSI
|
ØD
|
89
|
98
|
108
|
117
|
127
|
152
|
|
ØD1
|
61
|
70
|
79
|
89
|
98
|
121
|
|
L
|
154
|
170
|
200
|
245
|
250
|
290
|
|
T
|
11
|
12
|
14
|
16
|
17.5
|
19
|
|
n-Øe
|
4-16
|
4-16
|
4-16
|
4-16
|
4-16
|
4-19
|
Y-type Strainer(Union)DIM.
|
SIZE
|
1/2"
(15mm)
|
3/4"
(20mm)
|
1"
(25mm)
|
1-1/4"
(32mm)
|
1-1/2"
(40mm)
|
2"
(50mm)
|
|
JIS
|
Ød1
|
22.3
|
26.3
|
32.33
|
38.43
|
48.46
|
60.56
|
|
Ød2
|
21.7
|
25.7
|
31.67
|
37.57
|
47.54
|
59.44
|
|
I
|
22.2
|
25.4
|
28.58
|
31.75
|
34.93
|
38.1
|
|
ANSI
|
Ød1
|
21.54
|
26.87
|
33.65
|
42.42
|
48.56
|
60.63
|
|
Ød2
|
21.23
|
26.57
|
33.27
|
42.04
|
48.11
|
60.17
|
|
I
|
22.22
|
25.4
|
28.58
|
31.75
|
34.93
|
38.1
|
|
DIN
|
Ød1
|
20.3
|
25.3
|
32.3
|
40.3
|
50.3
|
63.3
|
|
Ød2
|
19.9
|
24.9
|
31.9
|
39.9
|
49.9
|
62.9
|
|
I
|
16
|
19
|
22
|
26
|
31
|
38
|
|
ØD
|
46.5
|
55
|
66
|
82
|
98
|
120
|
|
L
|
202
|
233
|
261
|
324
|
334
|
377
|
|
L1
|
56
|
64
|
72
|
87
|
90
|
98
|
Y-type Strainer(Socket) DIM.
|
SIZE |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
(15mm) |
(20mm) |
(25mm) |
(32mm) |
(40mm) |
(50mm) |
|
ANSI |
Ød1 |
21.54 |
26.87 |
33.65 |
42.42 |
48.56 |
60.63 |
|
Ød2 |
21.23 |
26.57 |
33.27 |
42.04 |
48.11 |
60.17 |
|
I |
22.22 |
25.4 |
28.58 |
31.75 |
34.93 |
38.1 |
|
D |
30 |
36 |
44 |
61 |
61 |
77 |
|
L |
90 |
105 |
117 |
150 |
154 |
181 |
|
| |
| |
| |
|
