| UPVC 直接頭(SXS) |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存

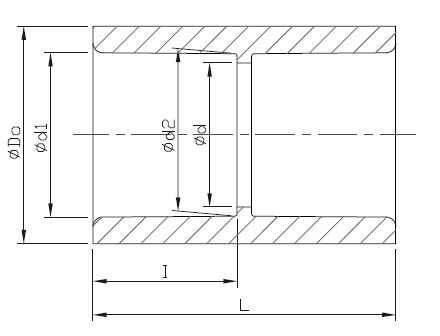

直接頭 (S×S)
|
Size
|
Outside Dia
|
Socket Type
|
Structure Diameter
|
|
D0
|
d1
|
d2
|
l
|
d
|
L
|
|
1/2”
|
30.5
|
21.54
|
21.23
|
22.22
|
16.5
|
52
|
|
3/4”
|
37.6
|
26.87
|
26.57
|
25.4
|
22
|
60
|
|
1”
|
47
|
33.65
|
33.27
|
28.58
|
28
|
65
|
|
1-1/4”
|
55.5
|
42.42
|
42.04
|
31.75
|
35
|
75
|
|
1-1/2”
|
60.9
|
48.56
|
48.11
|
34.93
|
42.5
|
79.5
|
|
2”
|
73.4
|
60.63
|
60.17
|
38.1
|
54
|
88
|
|
2-1/2”
|
89
|
73.38
|
72.85
|
44.45
|
65
|
100
|
|
3”
|
106
|
89.31
|
88.7
|
47.63
|
80
|
108
|
|
4”
|
133
|
114.76
|
114.07
|
57.15
|
100
|
126
|
|
5”
|
163
|
141.81
|
141.05
|
66.68
|
134.5
|
160
|
|
6”
|
191
|
168.83
|
168
|
76.2
|
158
|
169
|
|
8”
|
246
|
219.84
|
218.69
|
101.6
|
200
|
220
|
|
10”
|
307
|
273.81
|
272.67
|
127
|
259
|
283
|
|
12”
|
364
|
324.61
|
323.47
|
152.4
|
308
|
336.5
|
|
14”
|
396.5
|
356.49
|
355.22
|
205
|
346
|
436.5
|
|
16”
|
454
|
407.54
|
405.89
|
230
|
396
|
486.5
|
(單位 : mm)
|
| |
| |
| |
|
