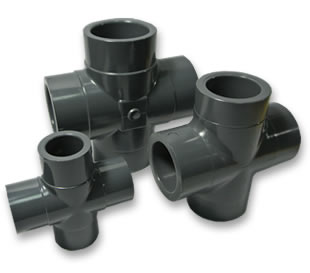

| UPVC 十字接頭 |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存

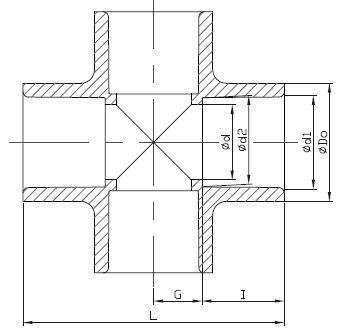

十字接頭 (S × S × S × S)
|
Size
|
Outside Dia
|
Socket Type
|
Structure Diameter
|
|
D0
|
d1
|
d2
|
l
|
d
|
G
|
L
|
|
1/2”
|
32
|
21.54
|
21.23
|
22.22
|
16.5
|
13
|
74.5
|
|
3/4”
|
44
|
26.87
|
26.57
|
25.4
|
22
|
15.4
|
86
|
|
1”
|
46
|
33.65
|
33.27
|
28.58
|
28
|
17.8
|
97
|
|
1-1/4”
|
56
|
42.42
|
42.04
|
31.75
|
35
|
23
|
116
|
|
1-1/2”
|
63.5
|
48.56
|
48.11
|
34.93
|
43
|
26.1
|
128.5
|
|
2”
|
74
|
60.63
|
60.17
|
38.1
|
54
|
31.8
|
146
|
|
2-1/2”
|
89
|
73.38
|
72.85
|
44.45
|
65
|
37.8
|
171
|
|
3”
|
105
|
89.31
|
88.7
|
47.63
|
80
|
47.6
|
196
|
|
4”
|
132
|
114.76
|
114.07
|
57.15
|
100
|
58
|
236.5
|
(單位 : mm)
|
| |
| |
| |
|
