| CPVC 直管 |
|
|
|
|
|
|

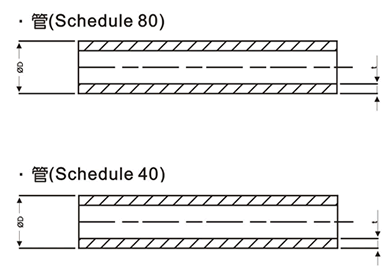

SCH80 直管
|
尺寸 |
外徑 (D) |
公差 |
最小厚度 (t) |
公差 |
|
1/2” |
21.34 |
±0.10 |
3.73 |
+0.51 |
|
3/4” |
26.67 |
±0.10 |
3.91 |
+0.51 |
|
1” |
33.4 |
±0.13 |
4.55 |
+0.53 |
|
1-1/4” |
42.16 |
±0.13 |
4.85 |
+0.58 |
|
1-1/2” |
48.26 |
±0.15 |
5.08 |
+0.61 |
|
2” |
60.32 |
±0.15 |
5.54 |
+0.66 |
|
2-1/2” |
73.02 |
±0.18 |
7.01 |
+0.84 |
|
3” |
88.9 |
±0.20 |
7.62 |
+0.91 |
|
4” |
114.3 |
±0.23 |
8.56 |
+1.02 |
|
5” |
141.3 |
±0.25 |
9.52 |
+1.14 |
|
6” |
168.28 |
±0.28 |
10.97 |
+1.32 |
|
8” |
219.08 |
±0.38 |
12.7 |
+1.52 |
|
10” |
273.05 |
±0.38 |
15.06 |
+1.80 |
|
12” |
323.85 |
±0.38 |
17.45 |
+2.08 |
|
14” |
355.6 |
±0.38 |
19.05 |
+2.29 |
|
16” |
406.4 |
±0.48 |
21.41 |
+2.57 |
|
18” |
457.2 |
±0.48 |
23.8 |
+2.84 |
|
20” |
508 |
±0.58 |
26.2 |
+3.15 |
|
24” |
609.6 |
±0.79 |
30.94 |
+3.71 |
(單位 : mm)
SCH40 直管
|
尺寸 |
外徑 (D) |
公差 |
最小厚度 (t) |
公差 |
|
1/2” |
21.34 |
±0.10 |
2.77 |
+0.51 |
|
3/4” |
26.67 |
±0.10 |
2.87 |
+0.51 |
|
1” |
33.4 |
±0.13 |
3.38 |
+0.51 |
|
1-1/4” |
42.16 |
±0.13 |
3.56 |
+0.51 |
|
1-1/2” |
48.26 |
±0.15 |
3.68 |
+0.51 |
|
2” |
60.32 |
±0.15 |
3.91 |
+0.51 |
|
2-1/2” |
73.02 |
±0.18 |
5.16 |
+0.61 |
|
3” |
88.9 |
±0.20 |
5.49 |
+0.66 |
|
4” |
114.3 |
±0.23 |
6.02 |
+0.71 |
|
5” |
141.3 |
±0.25 |
6.55 |
+0.79 |
|
6” |
168.28 |
±0.28 |
7.11 |
+0.86 |
|
8” |
219.08 |
±0.38 |
8.18 |
+0.99 |
|
10” |
273.05 |
±0.38 |
9.27 |
+1.12 |
|
12” |
323.85 |
±0.38 |
10.31 |
+1.24 |
|
14” |
355.6 |
±0.38 |
11.10 |
+1.35 |
|
16” |
406.4 |
±0.48 |
12.70 |
+1.52 |
|
18” |
457.2 |
±0.48 |
14.27 |
+1.70 |
|
20” |
508 |
±0.58 |
15.06 |
+1.80 |
|
24” |
609.6 |
±0.79 |
17.45 |
+2.08 |
(單位 : mm)
|
| |
| |
| |
|
