Size

Outside Dia

Socket Type

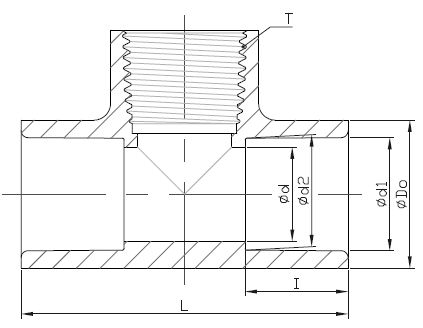

Structure Diameter

D0

d1

d2

l

d

L

NPT(thd./in)

1/2”

32

21.54

21.23

22.22

16.5

74

14

3/4”

37

26.87

26.57

25.4

24

85

14

1”

48.5

33.65

33.27

28.58

28

97

11.5

1-1/4”

55.5

42.42

42.04

31.75

35

115.5

11.5

1-1/2”

63.5

48.56

48.11

34.93

41

128

11.5

2”

75

60.63

60.17

38.1

52

146

11.5
