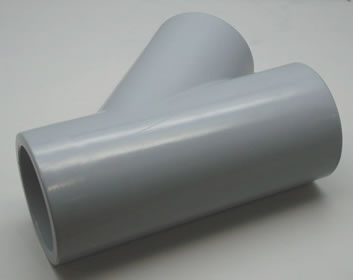

| CPVC Y三通 SXSXS |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存

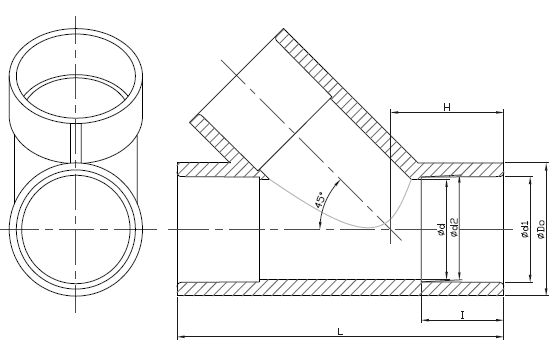

Y 三通 (S × S × S)
|
Size |
Outside Dia |
Socket Type |
Structure Diameter |
|
D0 |
d1 |
d2 |
l |
d |
L |
H |
|
1/2” |
30.5 |
21.54 |
21.23 |
22.22 |
19 |
90 |
34 |
|
3/4” |
36 |
26.87 |
26.57 |
25.4 |
24.5 |
105 |
40 |
|
1” |
44 |
33.65 |
33.27 |
28.58 |
31 |
117 |
42 |
|
1-1/4” |
61 |
42.42 |
42.04 |
31.75 |
40 |
150 |
52 |
|
1-1/2” |
61 |
48.56 |
48.11 |
34.93 |
46 |
150 |
52 |
|
2” |
76.5 |
60.63 |
60.17 |
38.1 |
58.5 |
181 |
60 |
|
3” |
106 |
89.31 |
88.7 |
47.63 |
74 |
222 |
68 |
|
4” |
132 |
114.76 |
114.07 |
57.15 |
100 |
277 |
83 |
|
6” |
191 |
168.83 |
168 |
76.2 |
150 |
393 |
114 |
|
8” |
246 |
219.84 |
218.69 |
101.6 |
200 |
570 |
177 |
(單位 : mm)
|
| |
| |
| |
|
