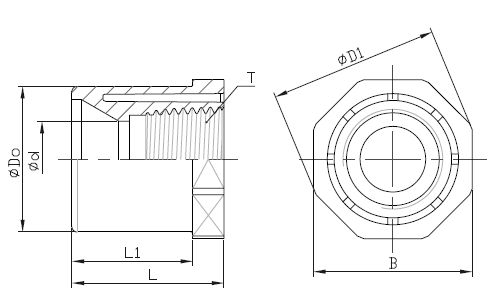

Size

Outside Dia

Structure Diameter

D0

d

L

 L1

B

D1

NPT(thd./in)

1/2" × 1/4"

21.34

11

29

23

30

31

18

1/2" × 3/8"

21.34

12

29

23

30

31

18

3/4" × 1/2"

26.67

13

33

27

30

33

14

1" × 3/8"

33.4

12

38

30

38

39.5

18

1" × 1/2"

33.4

12

38

30

38

39.5

14

1" × 3/4"

33.4

18

38

30

38

38.5

14
