| ‧Your Position : CPVC 工業管路系統 > UPVC直管 > CPVC 外牙接頭(閥接頭)(SXT) |
|
|
| CPVC 外牙接頭(閥接頭)(SXT) |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試，輸送或貯存

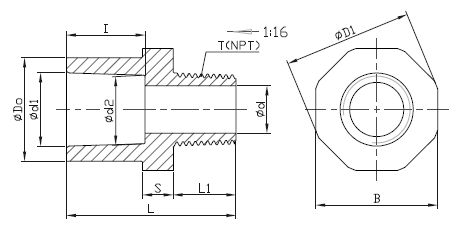

閥接頭 (S * NPT)
|
Size |
Outside Dia |
Socket Type |
Structure Diameter |
|
D0 |
d1 |
d2 |
l |
d |
L |
L1 |
B |
D1 |
NPT |
|
1/2" |
30.5 |
21.54 |
21.23 |
22.22 |
13 |
50 |
19 |
36 |
38 |
14 |
|
3/4" |
35 |
26.87 |
26.57 |
25.4 |
17 |
50 |
15 |
41 |
43 |
14 |
|
1" |
44 |
33.65 |
33.27 |
28.58 |
23 |
59 |
21 |
50 |
53 |
11.5 |
|
1-1/4" |
54 |
42.42 |
42.04 |
31.75 |
29 |
61 |
19 |
60 |
63 |
11.5 |
|
1-1/2" |
60 |
48.56 |
48.11 |
34.93 |
37 |
72 |
27 |
65 |
68 |
11.5 |
|
2" |
73 |
60.63 |
60.17 |
38.1 |
48 |
77 |
27 |
80 |
83 |
8 |
|
2-1/2" |
88 |
73.38 |
72.85 |
44.45 |
57 |
97 |
40 |
95 |
100 |
8 |
|
3" |
105 |
89.31 |
88.7 |
47.63 |
72 |
103 |
42 |
115 |
122 |
8 |
|
4" |
132 |
114.76 |
114.07 |
57.15 |
96 |
116 |
45 |
145 |
154 |
8 |
(Unit : mm)

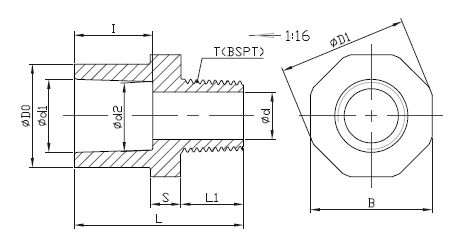

閥接頭 (S * BSPT)
|
Size |
Outside Dia |
Socket Type |
Structure Diameter |
|
D0 |
d1 |
d2 |
l |
d |
L |
L1 |
B |
D1 |
BSPT |
|
1/2" |
30.5 |
21.54 |
21.23 |
22.22 |
13 |
50 |
19 |
36 |
38 |
14 |
|
3/4" |
35 |
26.87 |
26.57 |
25.4 |
17 |
50 |
15 |
41 |
43 |
14 |
|
1" |
44 |
33.65 |
33.27 |
28.58 |
23 |
55 |
16.5 |
50 |
53 |
11 |
|
1-1/4" |
54 |
42.42 |
42.04 |
31.75 |
29.5 |
61 |
19 |
60 |
63 |
11 |
|
1-1/2" |
60 |
48.56 |
48.11 |
34.93 |
37 |
64 |
19 |
65 |
68 |
11 |
|
2" |
73 |
60.63 |
60.17 |
38.1 |
48 |
70.5 |
20.5 |
80 |
83 |
11 |
|
2-1/2" |
88 |
73.38 |
72.85 |
44.45 |
57 |
90 |
32 |
95 |
100 |
11 |
|
3" |
105 |
89.31 |
88.7 |
47.63 |
72 |
94.5 |
32 |
115 |
122 |
11 |
|
4" |
132 |
114.76 |
114.07 |
57.15 |
96 |
109.5 |
38 |
145 |
154 |
11 |
(Unit : mm)
|
| |
| |
| |
|
