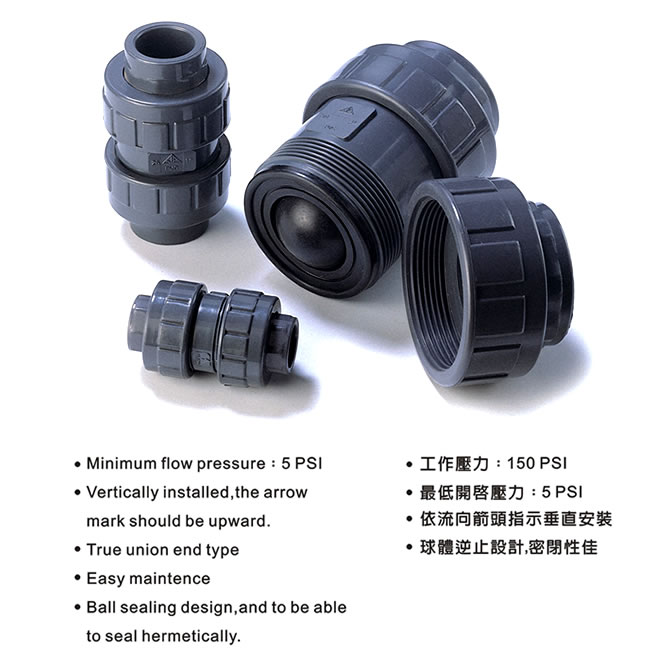

| CPVC 雙由令球型逆止閥 |
|
|
|
|
|
|
注意:不建議用壓縮空氣或氣體來做測試, 輸送或貯存
規格:
|
型號
|
尺寸
|
規格
|
材質
|
墊座
|
O-環
|
接口
|
|
VP-440
|
1/2"~2"
|
ANSI, JIS, DIN
|
PVC
|
EPDM, FPM, NBR
|
EPDM, FPM
|
Socket,Threaded
|
|
VP-441
|
1/2"~2"
|
ANSI, JIS, DIN
|
CPVC
|
EPDM, FPM, NBR
|
EPDM, FPM
|
Socket,Threaded
|
|
VP-443
|
1/2"~2"
|
ANSI, JIS, DIN
|
PVDF
|
EPDM, FPM, NBR
|
EPDM, FPM
|
Socket,Threaded
|
|
VP-444
|
1/2"~2"
|
ANSI, JIS, DIN
|
PP
|
EPDM, FPM, NBR
|
EPDM, FPM
|
Socket,Threaded
|
|

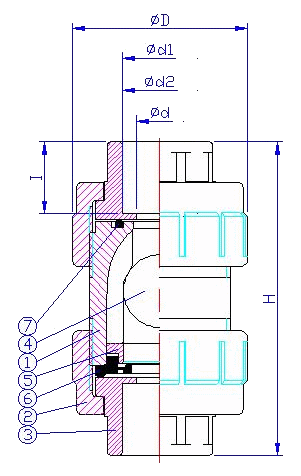

NO.
|
PART
|
MATERIAL
|
Q'TY
|
|
1
|
本體(BODY)
|
UPVC,CPVC,PP,PVDF
|
1
|
|
2
|
螺帽(UNION NUT)
|
UPVC,CPVC,PP,PVDF
|
2
|
|
3
|
外特普(END CONNECTOR)
|
UPVC,CPVC,PP,PVDF
|
2
|
|
4
|
球(BALL)
|
UPVC,CPVC,PP,PVDF
|
1
|
|
5
|
卡環(GLAND)
|
UPVC,CPVC,PP,PVDF
|
1
|
|
6
|
止逆座(SEAL)
|
EPDM,FPM,NBR
|
1
|
|
7
|
由令O環(O-RING)
|
EPDM,FPM
|
1
|
|
SIZE
|
1/2"
(15mm)
|
3/4"
(20mm)
|
1"
(25mm)
|
1-1/4"
(32mm)
|
1-1/2"
(40mm)
|
2"
(50mm)
|
|
JIS
|
Ød1
|
22.3
|
26.3
|
32.33
|
38.6
|
48.46
|
60.56
|
|
Ød2
|
21.7
|
25.7
|
31.67
|
37.67
|
47.54
|
59.44
|
|
I
|
22.2
|
25.4
|
28.6
|
31.75
|
34.9
|
38.1
|
|
ANSI
|
Ød1
|
21.45
|
26.87
|
33.65
|
42.42
|
48.56
|
60.63
|
|
Ød2
|
21.23
|
26.57
|
33.27
|
42.04
|
48.11
|
60.17
|
|
I
|
22.22
|
25.4
|
28.58
|
31.75
|
34.93
|
38.1
|
|
DIN
|
Ød1
|
20.3
|
25.3
|
32.3
|
40.3
|
50.3
|
63.3
|
|
Ød2
|
19.9
|
24.9
|
31.9
|
39.9
|
49.9
|
62.9
|
|
I
|
16
|
19
|
22
|
26
|
31
|
38
|
|
thd./in
|
NPT
|
14
|
14
|
11.5
|
11.5
|
11.5
|
11.5
|
|
BSPT
|
14
|
14
|
11
|
11
|
11
|
11
|
|
ØD
|
50
|
62
|
72
|
97
|
97
|
107
|
|
Ød
|
13
|
20
|
25
|
31.5
|
41
|
50
|
|
H
|
96
|
112
|
127
|
159
|
159
|
185
|
(Unit : mm)
|
| |
| |
| |
|
