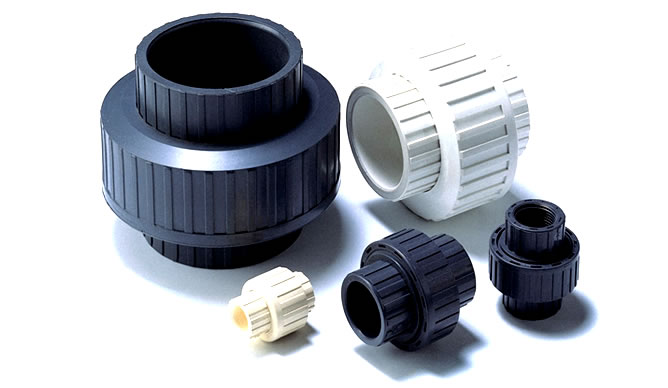

CPVC由令

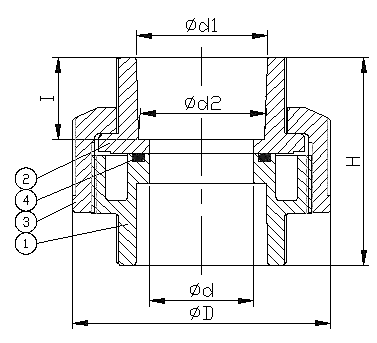

注意 : 不建議用壓縮空氣或氣體來做測試, 輸送或貯存 規格: 型號 尺寸 規格 材質 O-環 接口 VP-240 3/8"~4" ANSI, JIS, DIN, BS PVC EPDM, FPM Socket, Threaded VP-241 3/8"~4" ANSI, JIS, DIN, BS CPVC EPDM, FPM Socket, Threaded VP-243 3/8"~4" ANSI, JIS, DIN, BS PVDF EPDM, FPM Socket, Threaded VP-244 3/8"~4" ANSI, JIS, DIN, BS PP EPDM, FPM Socket, Threaded 　 NO. PART MATERIAL Q'TY 1 本體(BODY) UPVC,CPVC,PP,PVDF 1 2 外特普(END CONNECTOR) UPVC,CPVC,PP,PVDF 1 3 螺帽(UNION NUT) UPVC,CPVC,PP,PVDF 1 4 本體O環(O-RING) EPDM, FPM 1 　 SIZE 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" (10mm) (15mm) (20mm) (25mm) (32mm) (40mm) (50mm) (65mm) (80mm) (100mm) JIS d1 18.4 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7 d2 17.78 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.77 I 19.05 22.2 25.4 28.6 31.8 34.9 38.1 44.45 47.63 69 ANSI d1(UPVC) 17.45 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76 d1(CPVC) 17.45 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.28 114.73 d2(UPVC) 17.04 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07 d2(CPVC) 17.04 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.67 114.04 I(SCH80) 19.05 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 57.15 DIN d1 16.3 20.3 25.3 32.3 40.3 50.3 63.3 75.35 90.5 110.6 d2 15.9 19.9 24.9 31.9 39.9 49.9 62.9 74.9 89.9 109.9 I 14 16 19 22 26 31 38 44 51 61 BS d1 17.5 21.7 27.15 33.95 42.65 48.65 60.75 75.75 89.35 114.95 d2 16.8 21 26.35 33.15 41.85 47.85 59.95 74.95 88.45 113.65 I 19.05 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 57.15 thd./in NPT 18 14 14 11.5 11.5 11.5 11.5 8 8 8 BSPT 19 14 14 11 11 11 11 11 11 11 ØD 38 46.5 55 66 82 98 120 140 163 225 Ød 12 13.5 16.5 22 30 38 48 63 75 100 H 48 56 64 72 87 90 98 114 127 162 (Unit : mm)
