工作壓力：
2"~10" 150 PSI, 12" 100PSI, 14", 16" 86PSI, 18" 72PSI, 20"~24" 51PSI @73.4℉(23℃)
(標準中心柱材質SUS 410+熱處理，亦可選用SUS 304/316材質)
蝶片開啟角度可經由位址顯示器取得
操作電壓：AC 單相 110 / 220V
三相 220 / 380 / 460V
電動換手動操作時，不須離合器及煞車即可操作
注意:不建議用壓縮空氣或氣體來做測試, 輸送或貯存
規格:
|
型號 |
尺寸 |
規格 |
材質 |
墊座 |
O環 |
蝶片 |
接口 |
|
VP-840 |
2"~24" |
ANSI,JIS,DIN |
PVC |
EPDM,FPM |
EPDM,FPM |
PP |
Flanged |
|
VP-841 |
2"~24" |
ANSI,JIS,DIN |
CPVC |
EPDM,FPM |
EPDM,FPM |
CPVC |
Flanged |
|
VP-843 |
2"~24" |
ANSI,JIS,DIN |
PVDF |
EPDM,FPM |
EPDM,FPM |
PVDF |
Flanged |
|
VP-844 |
2"~24" |
ANSI,JIS,DIN |
PP |
EPDM,FPM |
EPDM,FPM |
PP |
Flanged |
|

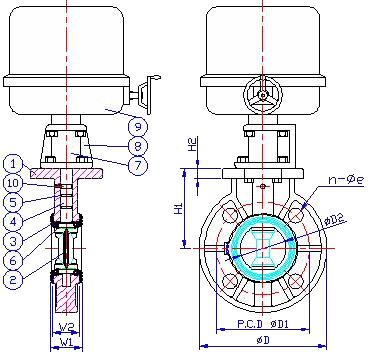

NO. |
PART |
MATERIAL |
Q'TY |
|
1 |
本體(BODY) |
UPVC,CPVC,PP,PVDF |
1 |
|
2 |
閥門(DISC) |
UPVC,CPVC,PP,PVDF |
1 |
|
3 |
墊座(SEAT SEAL) |
EPDM,FPM |
1 |
|
4 |
中心柱(STEM) |
SUS |
1 |
|
5 |
中心O環(STEM O-RING) |
EPDM,FPM |
2 |
|
6 |
閥門O環(DISC O-RING) |
EPDM,FPM |
2 |
|
7 |
連接頭(COUPLING) |
SUS |
1 |
|
8 |
固定架(MOUNTING PAD) |
SUS |
1 |
|
9 |
電動箱(ELECTRIC ACTIATPR) |
ALUMINUM ALLOY ENCLOSURE |
1 |
|
10 |
定位銷(PIN) |
SUS |
1 |
|
SIZE |
2"
(50mm) |
2-1/2"
(65mm) |
3"
(80mm) |
4"
(100mm) |
5"
(125mm) |
6"
(150mm) |
8"
(200mm) |
|
JIS |
ØD1 |
120 |
140 |
150 |
175 |
210 |
240 |
290 |
|
n-Øe |
4-19 |
4-19 |
8-19 |
8-19 |
8-23 |
8-23 |
12-23 |
|
ANSI |
ØD1 |
121 |
140 |
152 |
191 |
216 |
241 |
299 |
|
n-Øe |
4-19 |
4-19 |
4-19 |
8-19 |
8-23 |
8-23 |
8-23 |
|
DIN |
ØD1 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
|
n-Øe |
4-18 |
4-18 |
8-18 |
8-18 |
8-18 |
8-22 |
8-22 |
|
ØD |
165.5 |
185 |
200 |
229 |
257 |
288 |
343 |
|
ØD2 |
56.5 |
69.5 |
79.5 |
102.5 |
129.5 |
149.5 |
202 |
|
H1 |
105 |
113.5 |
116 |
136.5 |
163.5 |
177 |
209.5 |
|
H2 |
14.5 |
14 |
14 |
14 |
14.5 |
19 |
23.5 |
|
W1 |
42.5 |
47 |
47 |
57 |
68 |
70 |
85 |
|
W2 |
39 |
44 |
44 |
54 |
63 |
65 |
79 |
|
SIZE |
10"
(250mm) |
12"
(300mm) |
14"
(350mm) |
16"
(400mm) |
18"
(450mm) |
20"
(500mm) |
24"
(600mm) |
|
JIS |
ØD1 |
355 |
400 |
445 |
510 |
565 |
620 |
730 |
|
n-Øe |
12-25 |
16-25 |
16-25 |
16-27 |
20-27 |
20-27 |
24-33 |
|
ANSI |
ØD1 |
362 |
432 |
476 |
540 |
578 |
635 |
750 |
|
n-Øe |
12-25 |
12-25 |
12-29 |
16-29 |
16-32 |
20-32 |
20-35 |
|
DIN |
ØD1 |
350 |
400 |
460 |
515 |
565 |
620 |
725 |
|
n-Øe |
12-22 |
12-22 |
16-23 |
16-26 |
20-27 |
20-27 |
20-30 |
|
ØD |
411 |
490 |
530 |
596 |
630 |
696 |
813 |
|
ØD2 |
255 |
310 |
355 |
397.5 |
452.5 |
500 |
603 |
|
H1 |
239.5 |
298 |
300 |
345 |
370 |
410 |
480 |
|
H2 |
22 |
24.5 |
25.5 |
32 |
32 |
34 |
43 |
|
W1 |
109 |
131.5 |
127 |
166 |
179 |
189.5 |
210 |
|
W2 |
104 |
127 |
120.5 |
160 |
171 |
180 |
201 |
(Unit : mm)
|
SIZE |
ELECTRIC ACTUATOR |
|
WITH HANDWHEEL |
WITHOUT WITH HANDWHEEL |
|
2" |
OM2 |
OMA |
|
2-1/2" |
OM2 |
OMA |
|
3" |
OM2 |
OMA |
|
4" |
OM3 |
BM2 |
|
5" |
OM3 |
－ |
|
6" |
OM4 |
－ |
|
8" |
OM4 |
－ |
|
10" |
OM5 |
－ |
|
12" |
OM6 |
－ |
|
14" |
OM7 |
－ |
|
16" |
OM |
－ |
備註：
1.上述電動驅動器(Electric Actuator) 搭配型號及圖形僅供參考，可依客戶需求選用。
2. 18"以上及相關規格資料歡迎進一步向本公司洽詢。
|
ELECTRIC ACTUATOR |
Single-phase |
Three-phase |
|
110V |
220V |
220V |
380V |
440V |
|
BM2 |
V |
V |
V |
V |
V |
|
OMA |
V |
V |
X |
X |
X |
|
OM2 |
V |
V |
V |
V |
V |
|
OM3 |
V |
V |
V |
V |
V |
|
OM4 |
V |
V |
V |
V |
V |
|
OM5 |
V |
V |
V |
V |
V |
|
OM6 |
V |
V |
V |
V |
V |
|
OM7 |
V |
V |
V |
V |
V |
|
OM8 |
V |
V |
V |
V |
V |
|
TEL:07-7353676 FAX:07-7353677
