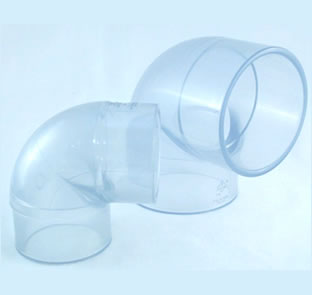

| 90° 彎頭 (S×S) |
|
|
|
|
|
|
適用於雙套管及低壓流體使用。
建議最高操作溫度:50℃。
注意 : 不建議用壓縮空氣或氣體來做測試, 輸送或貯存

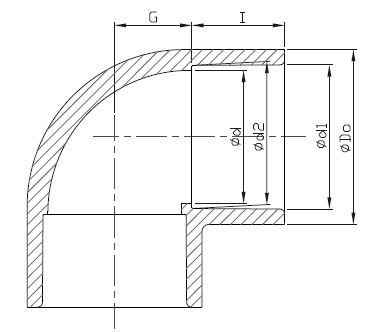

SCH40 90° 彎頭 (S×S)
|
Size
|
Outside Dia
|
Socket Type
|
Structure Diameter
|
|
D0
|
d1
|
d2
|
l
|
d
|
G
|
|
1/2"
|
27.5
|
21.54
|
21.23
|
17.8
|
18
|
12.7
|
|
3/4"
|
33.6
|
26.87
|
26.57
|
22.2
|
22.5
|
14.8
|
|
1"
|
41.4
|
33.65
|
33.27
|
26.1
|
29
|
18.3
|
|
1-1/4"
|
50.5
|
42.42
|
42.04
|
27.7
|
38
|
22.7
|
|
1-1/2"
|
56.8
|
48.56
|
48.11
|
28.3
|
43.5
|
25.7
|
|
2"
|
69
|
60.63
|
60.17
|
30
|
55
|
32
|
|
2-1/2"
|
84.2
|
73.38
|
72.85
|
45
|
67.5
|
39
|
|
3"
|
100.8
|
89.31
|
88.7
|
48.1
|
83.5
|
46.5
|
|
4"
|
127.3
|
114.76
|
114.07
|
51.3
|
108.5
|
59.7
|
(單位 : mm)
|
| |
| |
| |
|
