| 01.熱水系統 CPVC 直接頭 |
|
|
|
|
|
|
注意 : 不建議用壓縮空氣或氣體來做測試, 輸送或貯存

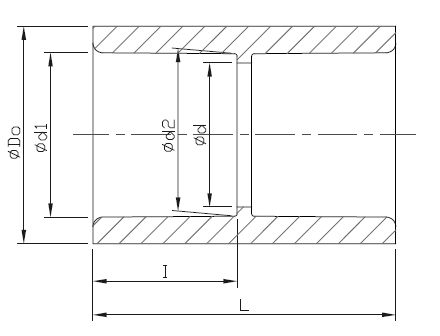

SCH80 直接頭(SxS)
|
Size |
Outside Dia |
Socket Type |
Structure Diameter |
|
D0 |
d1 |
d2 |
l |
d |
L |
|
1/2" |
30.5 |
21.54 |
21.23 |
22.22 |
16.5 |
6.5 |
|
3/4" |
37.5 |
26.87 |
26.57 |
25.4 |
22 |
8 |
|
1" |
46.2 |
33.65 |
33.27 |
28.58 |
28 |
8 |
|
1-1/4" |
55.2 |
42.42 |
42.04 |
31.75 |
35 |
10 |
|
1-1/2" |
60.9 |
48.56 |
48.11 |
34.93 |
43 |
12 |
|
2" |
73.4 |
60.63 |
60.17 |
38.1 |
54 |
16 |
|
2-1/2" |
89 |
73.38 |
72.85 |
44.45 |
69 |
18 |
|
3" |
106 |
89.31 |
88.7 |
47.63 |
84 |
20 |
|
4" |
133 |
114.76 |
114.07 |
57.15 |
108 |
26 |
|
6" |
191 |
168.83 |
168 |
79.2 |
14 |
169 |
|
8" |
246 |
219.84 |
218.69 |
104.6 |
200 |
220 |
|
10" |
306.5 |
273.81 |
272.67 |
130 |
249 |
284 |
|
12" |
364 |
324.61 |
323.47 |
155 |
290 |
336.5 |
(單位 : mm)
|
| |
| |
| |
|
