| 05.熱水系統 CPVC 管帽 |
|
|
|
|
|
|
注意 : 不建議用壓縮空氣或氣體來做測試, 輸送或貯存

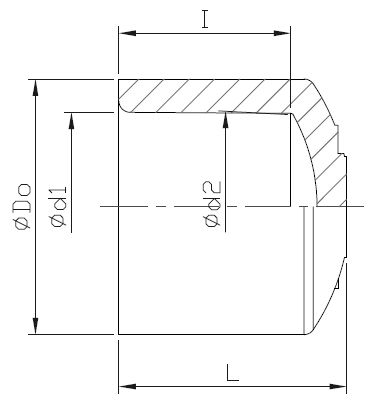

SCH80 管帽 (S × S)
|
Size |
Outside Dia |
Socket Type |
Structure Diameter |
|
D0 |
d1 |
d2 |
l |
L |
|
1/2" |
30.5 |
21.54 |
21.23 |
22.22 |
31 |
|
3/4" |
37 |
26.87 |
26.57 |
25.4 |
36 |
|
1" |
45.5 |
33.66 |
33.27 |
28.58 |
41 |
|
1-1/4" |
55 |
42.42 |
42.04 |
31.75 |
46 |
|
1-1/2" |
61.5 |
48.56 |
48.11 |
34.93 |
50 |
|
2" |
75 |
60.63 |
60.17 |
38.1 |
55.5 |
|
2-1/2" |
91 |
73.38 |
72.85 |
44.45 |
65.5 |
|
3" |
106 |
89.31 |
88.7 |
47.63 |
69.5 |
|
4" |
134 |
114.8 |
114.1 |
57.15 |
78 |
|
6" |
193 |
168.83 |
168 |
76.2 |
118.5 |
|
8" |
246 |
219.84 |
218.69 |
110.6 |
143 |
(單位 : mm)
|
| |
| |
| |
|
